| 제품 이름: | 수정 장치, 스티어링 밸브 | 오일 포트: | M20 |
|---|---|---|---|
| 품질: | OEM 품질 | 재료: | 금속 |
| 배수량: | 80 입방 센티미터 | 응용 프로그램: | 트랙터, 로더 |
| 강조하다: | 80cc hydraulic steering unit,hydraulic steering unit with M20 ports,tractor hydraulic steering unit |
||

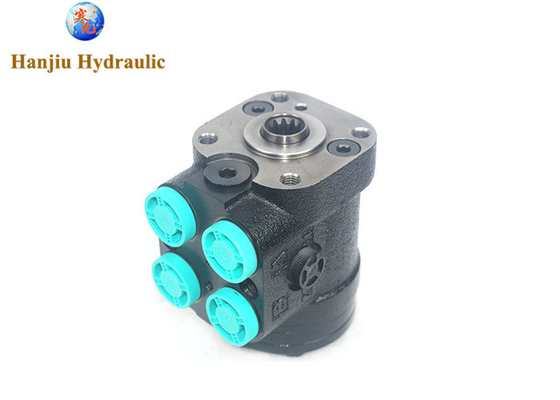

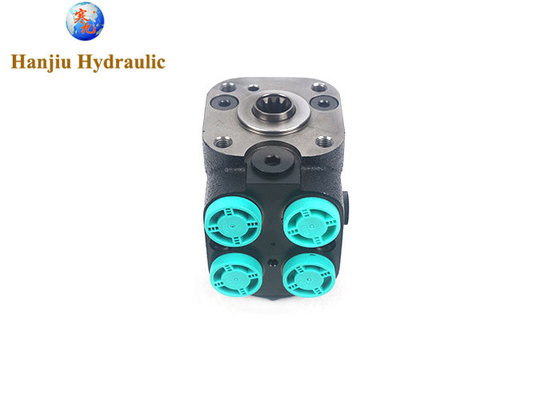

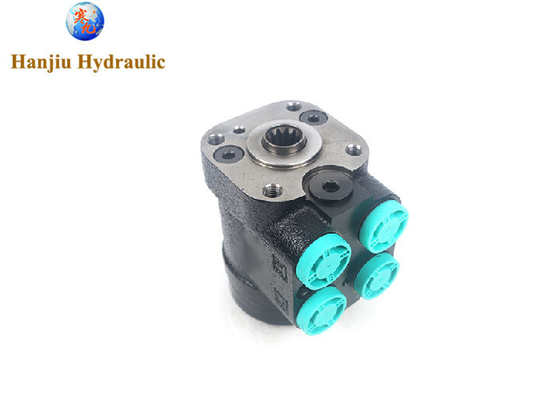

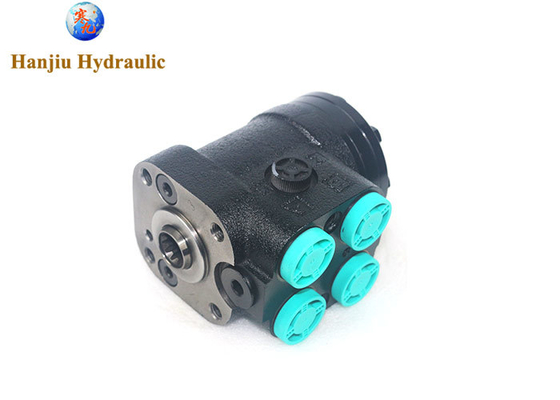

High-performance hydrostatic steering units designed for cargo and pushback tractors, featuring OSPC80LS orbitrols with M20 ports.
| Parameter | Value |
|---|---|
| Displacement | 80cc |
| Type | 101s series |
| Control Type | Load sensing |
| Max Pressure | 17.5 MPa |
| Max Back Pressure | 2.5 MPa |
| Port Threads | M20×1.5 O-ring |
| LS Ports | M12×1.5 O-ring |
| Function Code | 1,2,4 | 1,4 |
|---|---|
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max Input Pressure (MPa) | 17.5 |
| Relief Valve Pressure Settings (MPa) | 06,07,08,10,12,14,15,16,17.5 |
| Shock Valve Pressure Settings (MPa) | 12,13,14,16,18,20,21,22,23.5 |
These hydraulic steering units are compatible with various equipment including wheel loaders, backhoe loaders, pushback tractors, and forklifts. Available in multiple series including 109, 101, 101s, and 060 series.
Equivalent to OSPM, OSPB, OSPC, HKU, HKUS, and XCEL-45 models, ensuring broad application across industrial and agricultural machinery.
