제품 상세 정보:
결제 및 배송 조건:
|
| 제품 이름: | 수정 장치, 스티어링 밸브 | 오일 포트: | G1/2 |
|---|---|---|---|
| 품질: | OEM 품질 | 재료: | 주철 |
| 배수량: | 125 입방 센티미터 | 응용 프로그램: | 트랙터, 로더, 굴삭기 |
| 강조하다: | CAT 950F II steering power pump,CAT 980F II hydraulic valve,steering pump valve with warranty |
||

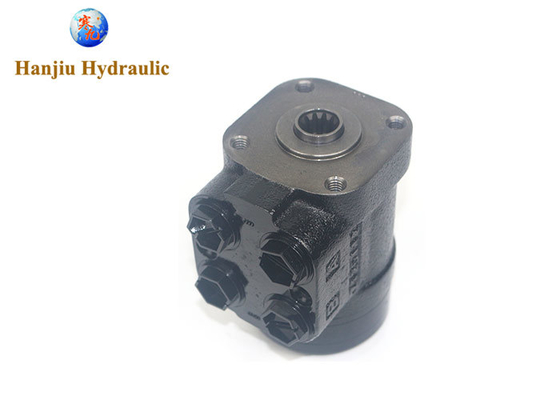

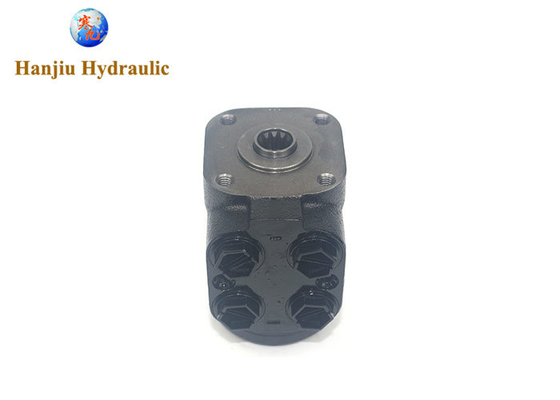

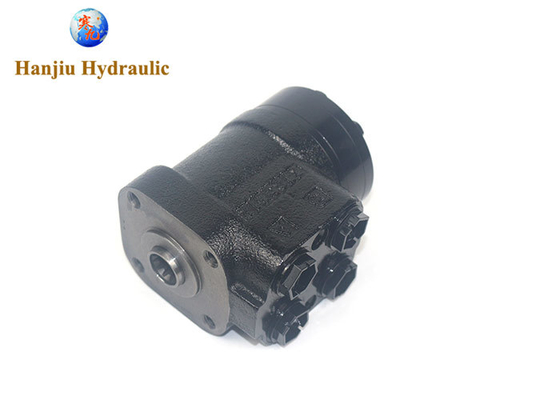

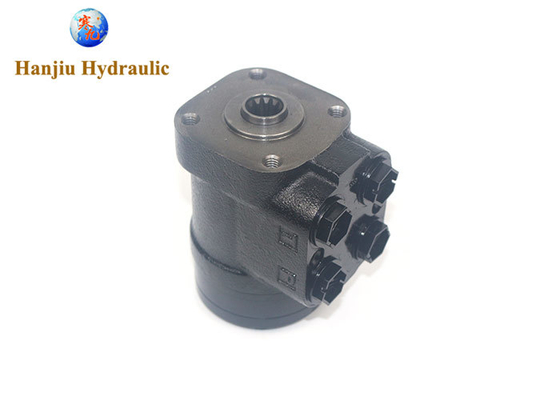

6E6406 6E-6406 Steering Power Pump Valve For Caterpillar CAT 950F II 980F II
Hanjiu hydraulic supply 101 series hydraulic steering units,
used on wheel loaders, backhoe loaders, pushback tractors, forklifts....
same quality, high performance
specification:
| Parameters | Series 101-*-***-**-* |
||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 17.5 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16,17.5 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22,23.5 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
Other types we offer
| 1198749 |
| 2477868 |
| 6E6406 |
| 1198748 |
| 1198767 |
| 3496093 |
| 1477343 |
Hanjiu technology produce the a series hydraulic steering units/hydraulic orbitrols,
with the same specification as OSPM, OSPB, OSPC, HKU, HKUS,XCEL-45
widely used on tractors, backhoe loaders, wheelloaders, excavators...
109 series
101 series
101s series
060 series
