제품 상세 정보:
결제 및 배송 조건:
|
| 목: | 저속도고 토크 모터 | 유형: | BMSY-125-M4-FDM-HD |
|---|---|---|---|
| 플랜지: | 사각 플랜지 | 샤프트: | 14T 스파인 샤프트 |
| 물질: | 주철 | 보증: | 1년 |
| 강조하다: | Customized hydraulic motor BMSY,125cc hydraulic motor with flange,14T spline shaft hydraulic motor |
||

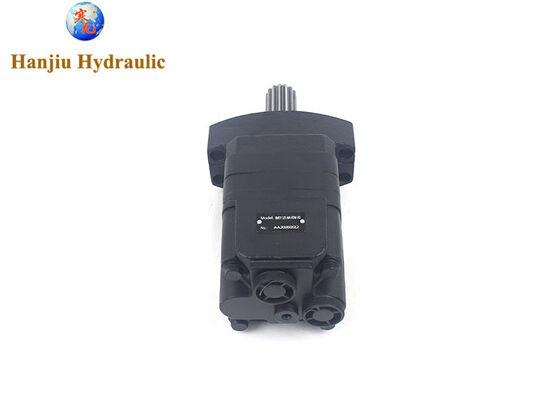

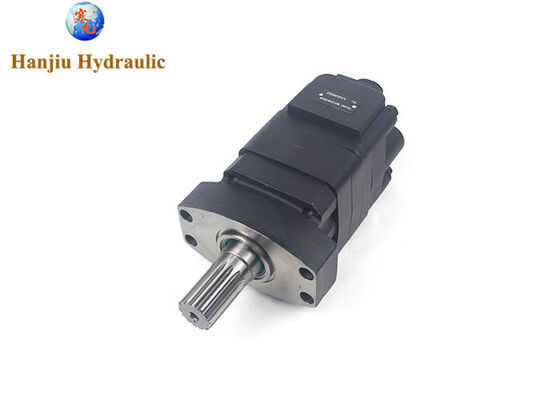

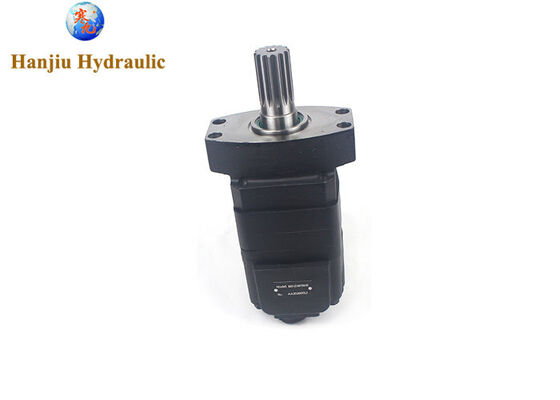

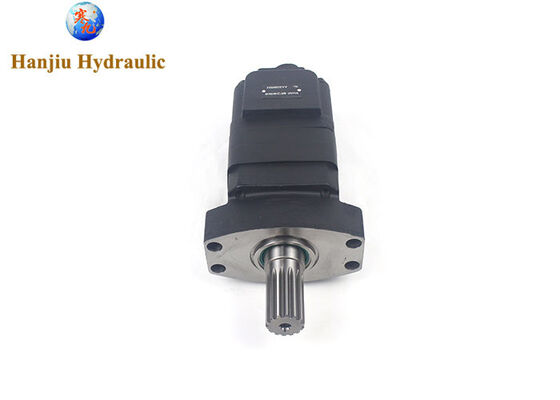

Customized hydraulic motor BMSY,125cc magneto flange , 14T spline shaft with rear ports
Product details:
type code BMSY-125-M4-FDM-HD
Displacement:125cc
Flange:Magneto flange, 4 bolts
Shaft:14T spline shaft
Ports: rear ports
BMSY Main Specifications:
| Type | BMSY 80 |
BMSY 100 |
BMSY 125 |
BMSY 160 |
BMSY 200 |
BMSY 250 |
BMSY 315 |
BMSY 400 |
BMSY 475 |
|
| Geometric displacement (cm3 /rev.) |
80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | 475 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | 155 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | 185 | |
| Max. torque (N·m) | cont. | 225 | 290 | 365 | 485 | 586 | 708 | 880 | 880 | 910 |
| int. | 305 | 390 | 480 | 590 | 705 | 860 | 1000 | 980 | 990 | |
| Max. output (kW) | cont. | 16 | 18 | 18 | 18.1 | 18.1 | 18 | 17 | 11 | 9 |
| int. | 20 | 22 | 23 | 25 | 24 | 23.8 | 20.2 | 12 | 11 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 21 | 21 | 20 | 20 | 16 | 14 |
| int. | 27.5 | 27.5 | 27.5 | 26 | 25 | 25 | 24 | 19 | 15 | |
| peak | 29.5 | 29.5 | 29.5 | 28 | 27 | 27 | 26 | 21 | 17.5 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 13.2 | 14.3 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute
Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems
This specific motor series—often produced by brands like Hanjiu, Dynamic Fluid Components , Anfield, or Huade—is widely utilized in agricultural machinery, skid-steer attachments, conveyors, and winch drives
if you have special type of orbit motors, pls check with HANJIU Technology
we will do our best to design and produce for you!
