| 제품: | 저속 고토크 유압 모터 | 모델 번호: | BMER-2-350 |
|---|---|---|---|
| 크기: | 350ml/r | 플랜지: | 차륜플렌지 |
| 샤프트: | 스플라인 축 | 회전: | CCW |
| 포트: | G1/2 | 재료: | 주철 |
| 강조하다: | hydraulic wheel motor Parker TG0335HW,low speed high torque hydraulic motor,hydraulic motor BSPP 1/2 ports |
||

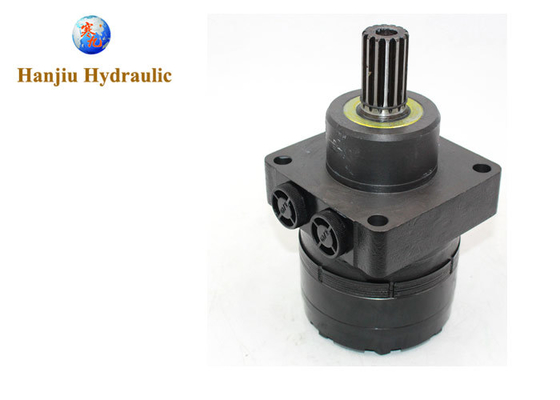

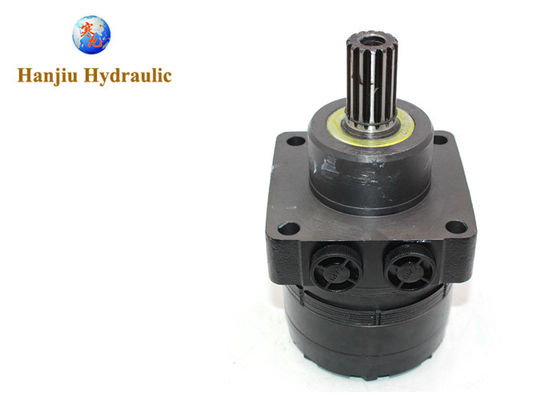

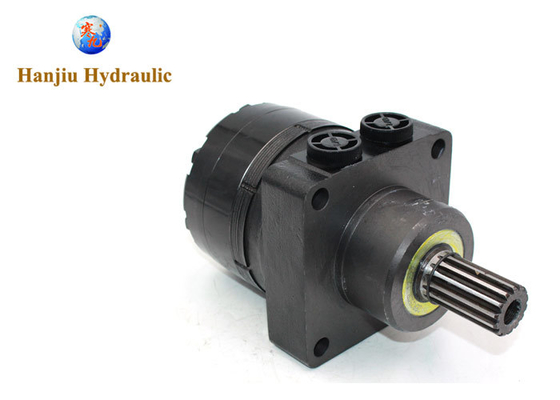

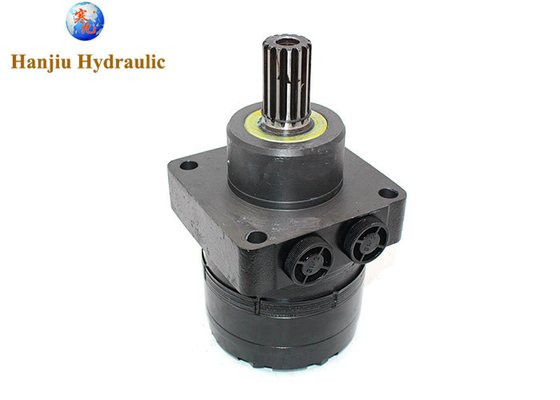

Low Speed High Torque Hydraulic Motor designed for manlifts and aerial work platforms, model BMER-2-350-WD-FD1-R-B with 350cc
| Product | Low Speed High Torque Hydraulic Motor |
| Model No. | BMER-2-350-WD-FD1-R-B |
| Size | 350ml/r |
| Flange | Wheel flange |
| Shaft | spine shaft |
| Rotation | CCW |
| Port | G1/2 |
| Material | Cast iron |
| Type | BMER 125 | BMER 160 | BMER 200 | BMER 230 | BMER 250 | BMER 300 | BMER 350 | BMER 375 | BMER 475 | BMER 540 | BMER 750 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 |
| Max. speed (rpm) cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| Max. speed (rpm) int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 |
| Max. torque (N•m) cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| Max. torque (N•m) int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 |
| Max. torque (N•m) peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 |
| Max. output (kW) cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| Max. output (kW) int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 |
| Max. pressure drop (MPa) cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| Max. pressure drop (MPa) int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 |
| Max. pressure drop (MPa) peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 |
| Max. flow (L/min) cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| Max. flow (L/min) int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 |
Consider the after-sales service and response speed
Good after-sales service is a strong guarantee in the process of product use. When choosing a supplier, it is necessary to understand its after-sales service policy, including the warranty period, maintenance services, technical support and so on. For example, whether the warranty period to provide free maintenance and replacement parts services, whether there is a professional technical team can provide remote or on-site technical support in a timely manner in the event of equipment failure. In addition, the supplier's response time is also critical. Take a construction machinery enterprise as an example, its use of orbital motor failure, the supplier can respond within 24 hours and send technicians to repair, greatly reducing equipment downtime, to protect the progress of the project.
Compare price and cost
Price is a factor to be considered when selecting suppliers, but not only the price as the selection criteria. Too low a price may mean that the quality of products or services have hidden problems, while too high a price does not necessarily mean that the product is of the best quality. When comparing prices, it is important to consider factors such as product performance, quality and after-sales service to calculate the total cost of ownership. You can request quotes from multiple suppliers, conduct detailed analysis and comparison, and choose the supplier with the best cost performance. At the same time, it is also necessary to pay attention to the price stability of the supplier to avoid frequent price fluctuations affecting the cost control of the enterprise.
