제품 소개저속 높은 토크 유압 모터

BMER-475 high torque motor, magneto mount 6 holes, 1inch straight key shaft for drilling machines

중국 Shijiazhuang Hanjiu Technology Co.,Ltd 인증
중국 Shijiazhuang Hanjiu Technology Co.,Ltd 인증
여보세요, Hanhan의 나의 친애하는 친구! whatsapp에 의하여 당신과 연락하십시오.

—— Ricky Naidoo

여보세요, 친애하는 Alysa의 당신은 키 크고 사랑스러운 소녀와 같이 보입니다. 당신의 카탈로그를 당신을 감사하십시오, 나는 당신을 곧 대답할 것입니다.

—— Bhavin Gandhi

친애하는 Emily의 당신은 감미로운 소녀입니다. 연락하십시오.

—— Roy Quemada

친애하는 Shirley, 당신의 환자를 당신을 감사하십시오. 나는 곧 돌아올 것입니다.

—— 샘

친애하는 사이몬의 표본은 받아집니다. 나는 그것을 가능한 빨리 검출할 것입니다.

—— 잭 LORSHBOUGH

친애하는 앨버트의 좋은 일, 우리는 좋은 파트너이어서 좋습니다.

—— 래리 timmons

제가 지금 온라인 채팅 해요

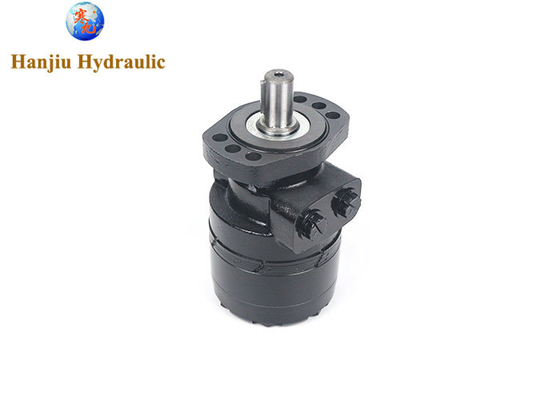

BMER-475 high torque motor, magneto mount 6 holes, 1inch straight key shaft for drilling machines

BMER-475 high torque motor, magneto mount 6 holes, 1inch straight key shaft for drilling machines

큰 이미지 :  BMER-475 high torque motor, magneto mount 6 holes, 1inch straight key shaft for drilling machines

제품 상세 정보:
원래 장소: 중국
브랜드 이름: HANJIU
인증: CE, ISO9001
모델 번호: BMER-2-350-MS-G2
결제 및 배송 조건:
최소 주문 수량: 100 조각
가격: 170 usd/pc
포장 세부 사항: 상자, 팔레트
배달 시간: 35 - 45 근무일
지불 조건: T/T, Western Union
공급 능력: 매년마다 10000개 부분
상세 제품 설명
제품: 저속 고토크 유압 모터 모델 번호: BMER-2-475
크기: 475ml/r 플랜지: 마그네토 마운트 4 홀 플랜지
샤프트: 25.4 mm 키 샤프트 회전: CCW
포트: 7/8-14UNF 재료: 주철
강조하다:

high torque hydraulic motor with straight key shaft

,

magneto mount hydraulic motor for drilling machines

,

6 hole hydraulic motor with 1inch shaft

BMER-475 high torque motor, magneto mount 6 holes, 1inch straight key shaft for drilling machines
Attribute Value
Product Low Speed High Torque Hydraulic Motor
Model No. BMER-2-475-FS-RW
Size 475ml/r
Flange Magneto Mount 6-Hole flange
Shaft 25.4 mm key shaft
Rotation CCW
Port 7/8-14UNF
Material Cast iron
Quick Specifications
Model No. TG475FS=BMER-2-475
Displacement 475 ml/r
Flange Magneto mount 6-hole
Pilot 82.55*2.8
Ports BMER-2-475-FS-RW
Output Shaft 25.4 mm straight shaft
Rotation Right
Paint Black
Technical Specifications
Type BMER 125 BMER 160 BMER 200 BMER 230 BMER 250 BMER 300 BMER 350 BMER 375 BMER 475 BMER 540 BMER 750
Geometric displacement (cm3/rev.) 118 156 196 228 257 296 345 371 462 540 745
Max. speed (rpm) cont. 360 375 330 290 290 250 220 200 160 140 100
Max. speed (rpm) int. 490 470 425 365 350 315 270 240 195 170 120
Max. torque (N•m) cont. 325 450 530 625 700 810 905 990 1085 980 1050
Max. torque (N•m) int. 380 525 600 710 790 930 1035 1140 1180 1240 1180
Max. torque (N•m) peak 450 590 750 870 980 1120 1285 1360 1260 1380 1370
Max. output (kW) cont. 12.0 15.0 15.5 16.0 17.5 18.0 17.5 16.5 14.5 11.5 8.0
Max. output (kW) int. 14.0 17.5 18.0 19.0 20.0 21.0 20.0 19.0 16.5 15.0 10.0
Max. pressure drop (MPa) cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 17.5 14 10.5
Max. pressure drop (MPa) int. 24 24 24 24 24 24 24 24 19 17.5 12
Max. pressure drop (MPa) peak 27.6 27.6 27.6 27.6 27.6 27.6 27.6 27.6 20.5 20.5 14
Max. flow (L/min) cont. 45 60 70 70 75 80 80 75 75 75 75
Max. flow (L/min) int. 60 75 85 85 90 95 95 90 90 90 90

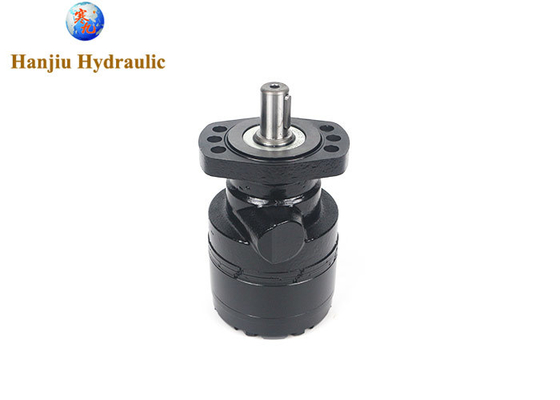

BMER-475 high torque motor, magneto mount 6 holes, 1inch straight key shaft for drilling machines 0

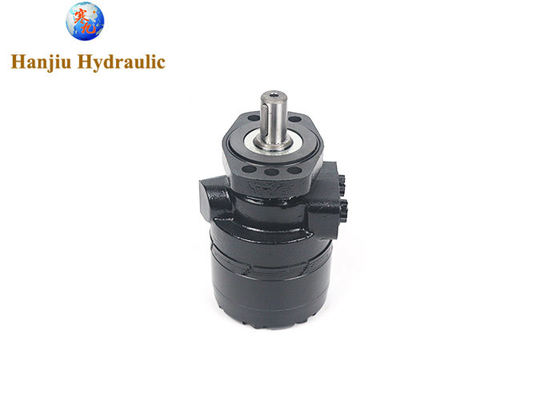

BMER-475 high torque motor, magneto mount 6 holes, 1inch straight key shaft for drilling machines 1

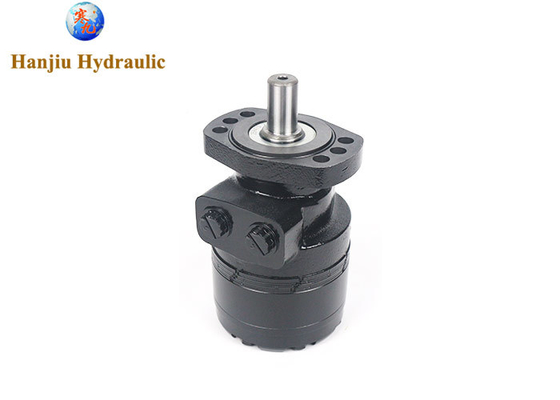

BMER-475 high torque motor, magneto mount 6 holes, 1inch straight key shaft for drilling machines 2


The orbital Motor can be categorized into shaft-flow motor, disk-flow motor, and valve-flow motor according to the flow distribution method, which is the most conventional way of categorization.


Some orbital motors are designed with a speed sensor.


Some orbital motors are designed with a brake. (Brake principle: spring loaded, hydraulically released)


Some orbital motors are designed with their own clutch. (Motor operates normally when pressurized oil is fed to the end of the motor; motor output shaft is free when no pressurized oil is fed to the end of the motor.)


Some orbital motors have been used to drive small vehicles, and the motor is designed to be driven on the side of the wheel. (Wheel drive orbital motor)


There are many different types of Orbital Motors, and the specific type of orbital motor to be selected needs to be analyzed in relation to the requirements of the use. To summarize, the following factors should be considered when selecting an orbital motor:

1.the need for motor torque size, of course, first to determine the system pressure, hydraulic motor torque output and system pressure has a direct relationship.

2.the need for motor speed

3.According to the motor connection form to consider the back pressure of the motor, the tandem system in particular, the main motor back pressure.

4.according to the motor system to consider the size of the motor back pressure, a lot of agricultural machinery auxiliary motor back pressure up to 60bar.

5.pay special attention to the motor can withstand the back pressure and motor output speed is directly related to the motor output speed, the higher the motor output speed, can withstand the back pressure is smaller, please see the manufacturer's samples.

6.hydraulic motor installation requirements and volume requirements, determine the shell and output shaft.

7.Choose the commonly used models, so that the delivery time and price has the advantage.


Understanding types of Orbital Motors can help users efficiently shop for products, if you want to learn more about the expertise or want to buy related products, welcome to visit our official website for browsing.
