제품 상세 정보:
결제 및 배송 조건:
|
| 목: | 모노블록 밸브 | 재료: | 금속 |
|---|---|---|---|
| 적용하십시오: | 트랙터, 로더 | 스풀: | 2 뱅크 |
| 맥스 작동 압력: | 250개 바 | 제어 유형: | 전기 제어 유형 |
| 강조하다: | P50 2 spool hydraulic valve,12VDC directional control valve,250Bar monoblock valve |
||

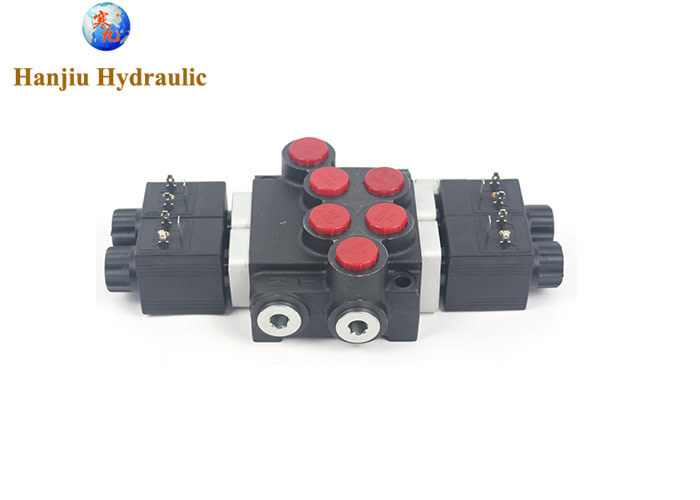

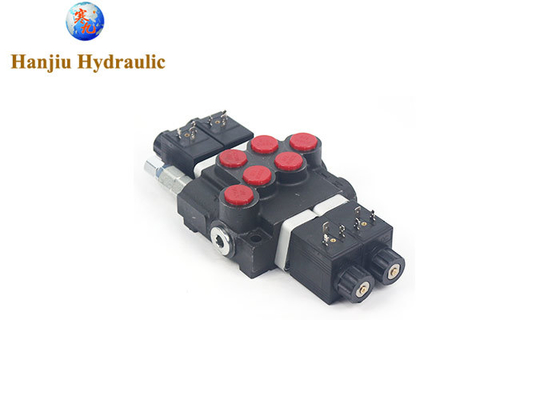

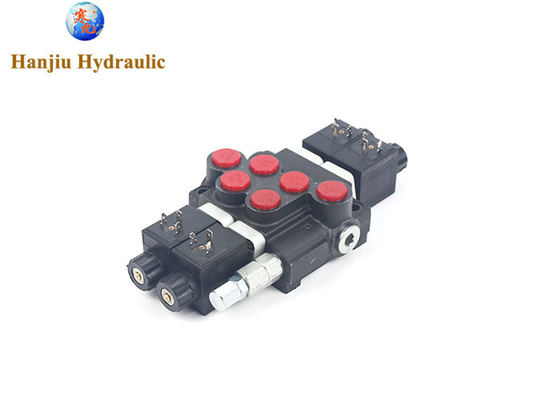

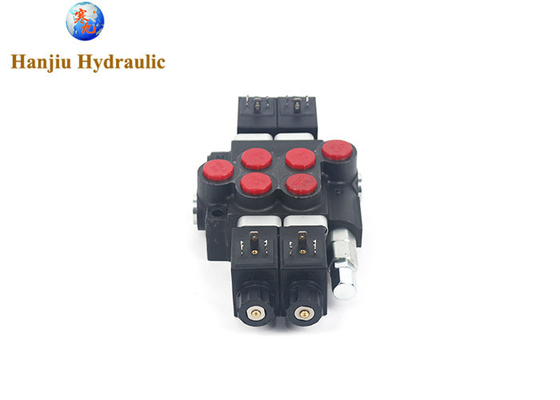

P50 Solenoid 2 Spool Monoblock Directional Valve 12VDC,250Bar hydraulic electric valve
type details
flow rate:50liters
spool type:2spools
pressure:200bar
inlet port:G1/2
working port:G3/8
control: 3position double acting
outlet port:G1/2
voltage:12VDC
Control type:
electro-hydraulic,solenoid
Circuit type: parallel
Application :
Cranes, Telescopic boom fork lifts, Back-hoe Excavators and Compactors,Sanitation Vehicles
| flow rate | 50 liters |
| number of spools | 2 banks |
| inlet section valve | side inlet, with relief valve |
| relief valve set pressure | 200bar |
| inlet port size | G1/2 |
| spool type | 3 positon, double acting |
| handle side arrangement | standard type |
| spool cap side arrangement | 3position, spring return,manual control,detent control, |
| working section arrangement | standard type |
| work port size | G3/8 |
| outlet section type | top outlet,side |
| outlet port size | G1/2 |
similar order code
| Z50-A-ES3-12VDC-G |
| Z50-A-ES3-24VDC-G |
| 2Z50-AA-ES3-12VDC-G |
| 2Z50-AA-ES3-24VDC-G |
| 3Z50-AAA-ES3-12VDC-G |
| 3Z50-AAA-ES3-24VDC-G |
| 4Z50-AAAA-ES3-12VDC-G |
| 4Z50-AAAA-ES3-24VDC-G |
| 5Z50-AAAAA-ES3-12VDC-G |
| 5Z50-AAAAA-ES3-24VDC-G |
| 6Z50-AAAAAA-ES3-12VDC-G |
| 6Z50-AAAAAA-ES3-24VDC-G |
| 7Z50-AAAAAAA-ES3-12VDC-G |
| 7Z50-AAAAAAA-ES3-24VDC-G |
As a core component in a hydraulic system, the stability and reliability of the hydraulic directional valve is critical to the operation of the entire system. Through regular maintenance and repair, as well as effective treatment of common failures, you can ensure that the hydraulic directional valves continue to play a good performance in the complex and changing conditions. If the directional valve is seriously damaged, it needs to be replaced in time, Hanjiu company produces and sells high-quality hydraulic valves, the quality of these products is guaranteed, after-sales service in place, if you need, you can go to the official website of Hanjiu company to browse the relevant information, look forward to working with you.
