| 목: | 모노블록 밸브 | 재료: | 금속 |
|---|---|---|---|
| 적용하십시오: | 트랙터 차량, 농업 기계 | 스풀: | 4spools |
| 맥스 작동 압력: | 250개 바 | 제어 유형: | 스프링 리턴, Detent Return |
| 강조하다: | Hydraulic Directional Valve 40L 4 Spools,Directional Control Valve G3/8 Ports,4 Spool Hydraulic Valve with Warranty |
||

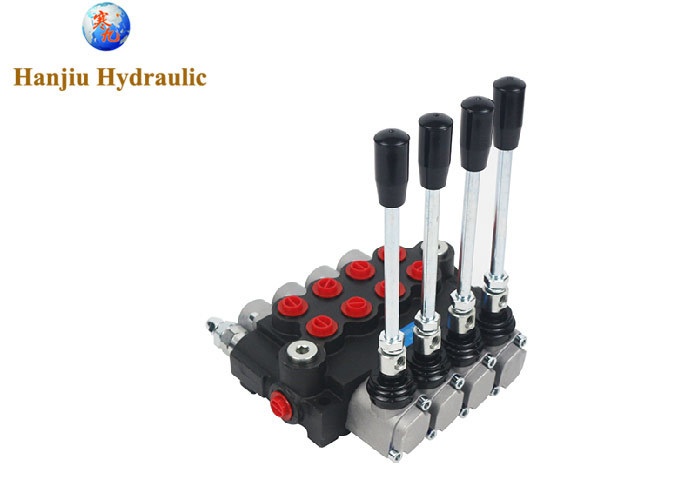

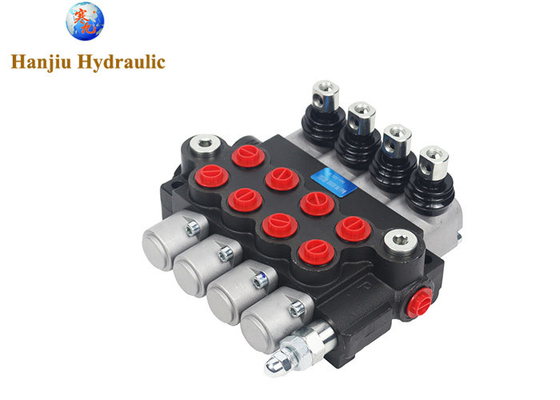

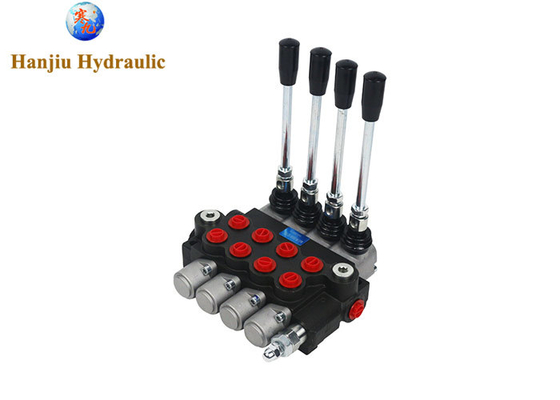

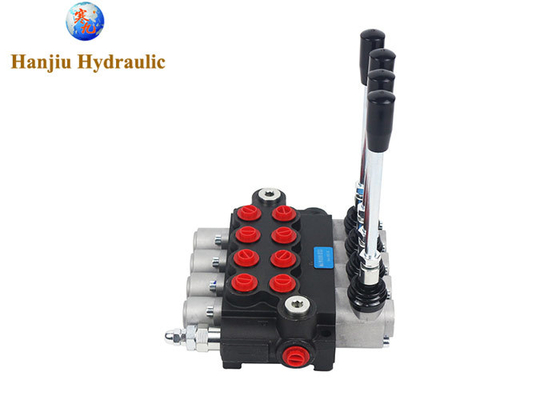

4P40-1A1A1A1A1GKZ1 hydraulic direction valve 40liters, monoblock valves G3/8 ports size
type code
P40-4 manual spring type
Code: P40 liters
Sections: 4
Relief Valve Setting Pressure:180(bar)
Intlet Port Option: G3/8
Control Method Option: manual control +floating control
Spool Function: 3 Positions, double acting;
Spool Returning Way:spring return
Working Port Option: G3/8
Outlet Port Option: G3/8
| flow rate | 40 liters |
| number of spools | 4 spools |
| inlet section valve | side inlet, with relief valve |
| relief valve set pressure | 200bar |
| inlet port size | G3/8 |
| spool type | 3 Positions, Double Acting |
| handle side arrangement | standard type |
| spool cap side arrangement | 3position, spring return,manual control,detent control, |
| working section arrangement | standard type |
| work port size | G3/8 |
| outlet section type | top outlet,side |
| outlet port size | G3/8 |
Different types
